FRP Sectional Panel – Roof Panel 2m x 1m
Loose FRP/GRP roof panel, 2 m x 1 m, from 4 mm thick, for covering sectional panel water tanks. Use it to replace a cracked or missing roof panel. Made by Y.T. Fibreglass Industries Sdn Bhd.

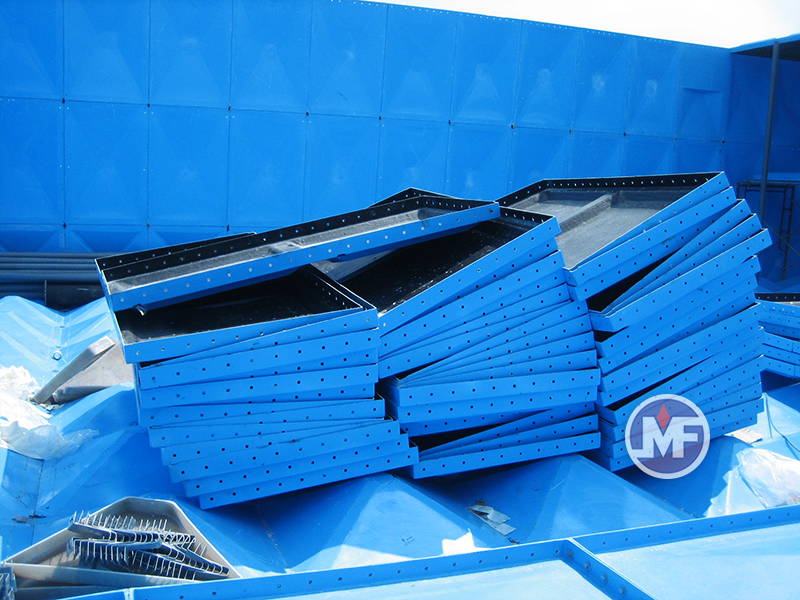

FRP Roof Panel 2 m x 1 m for Sectional Water Tanks
The FRP-SP-ROOF-2x1 is a loose FRP/GRP roof panel, 2 m x 1 m, used for covering the top of sectional panel water tanks; roof panels are standard at 2 m x 1 m. It is made by hand lay-up (contact moulding) by Y.T. Fibreglass Industries Sdn Bhd, the maker of Mui Fatt sectional panel water tanks certified to MS 1390:2010. Buy it to build a new tank, extend one, or replace a cracked or leaking panel.
Ringkasan
Panel bumbung FRP/GRP 2 m x 1 m untuk menutup bahagian atas tangki air panel; saiz standard panel bumbung ialah 2 m x 1 m. Panel dibuat secara hand lay-up oleh Y.T. Fibreglass Industries, pembuat tangki air panel Mui Fatt mengikut MS 1390:2010. Sesuai untuk tangki baharu, membesarkan tangki atau mengganti panel yang rosak.
Specifications
| Model | FRP-SP-ROOF-2x1 |
|---|---|
| Panel type | Roof Panel (roof) |
| Size | 2 m x 1 m |
| Thickness | from 4 mm |
| Weight | At least 12 kg per panel |
| Material | FRP/GRP: unsaturated polyester resin with E-glass chopped strand mat and woven roving |
| Process | Hand lay-up (contact moulding) |
| Joint | Bolted flange with sealant gasket |
| Manufacturer | Y.T. Fibreglass Industries Sdn Bhd |
Panel Material Properties
| Specific gravity | 1.8 |
|---|---|
| Glass content | More than 30% |
| Tensile strength | 1,020 kg/cm² |
| Flexural strength | 1,650 kg/cm² |
| Compressive strength | 3,010 kg/cm² |
| Water absorption | Less than 0.2% |
| Light transmittance | Nil (blocks light, which helps prevent algae growth) |
Questions About This Panel
Do you make a 1 m x 1 m roof panel?
No. The standard roof panel is 2 m x 1 m. A 1 m x 1 m manhole panel is fitted in the roof for access.
Will this panel fit my existing tank?
It fits Mui Fatt and Y.T. Fibreglass sectional tanks. For a tank from another maker, send us a photo, the panel size and the bolt hole spacing so we can check before you order.
Can you replace the panel for me?
Yes. Our team can drain the tank, exchange the panel and fit new gaskets and bolts. See panel tank refurbishment and panel exchange.
Berapa harga panel bumbung FRP 2m x 1m?
Harga bergantung kepada saiz panel, kuantiti, lokasi tapak dan sama ada pemasangan diperlukan. Hubungi Mui Fatt untuk sebut harga terkini. Get a Quote →
For materials, bracing, installation steps, warranty and certificates, see the full FRP/GRP Sectional Panel Water Tank guide. SPAN and SIRIM documents are on our certificate page.
