MG 25-38 Custom Color (Square/Grating Only)
Suitable for off shore or near to sea application.

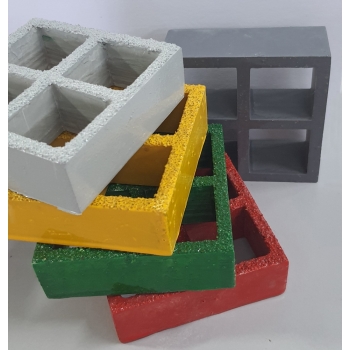

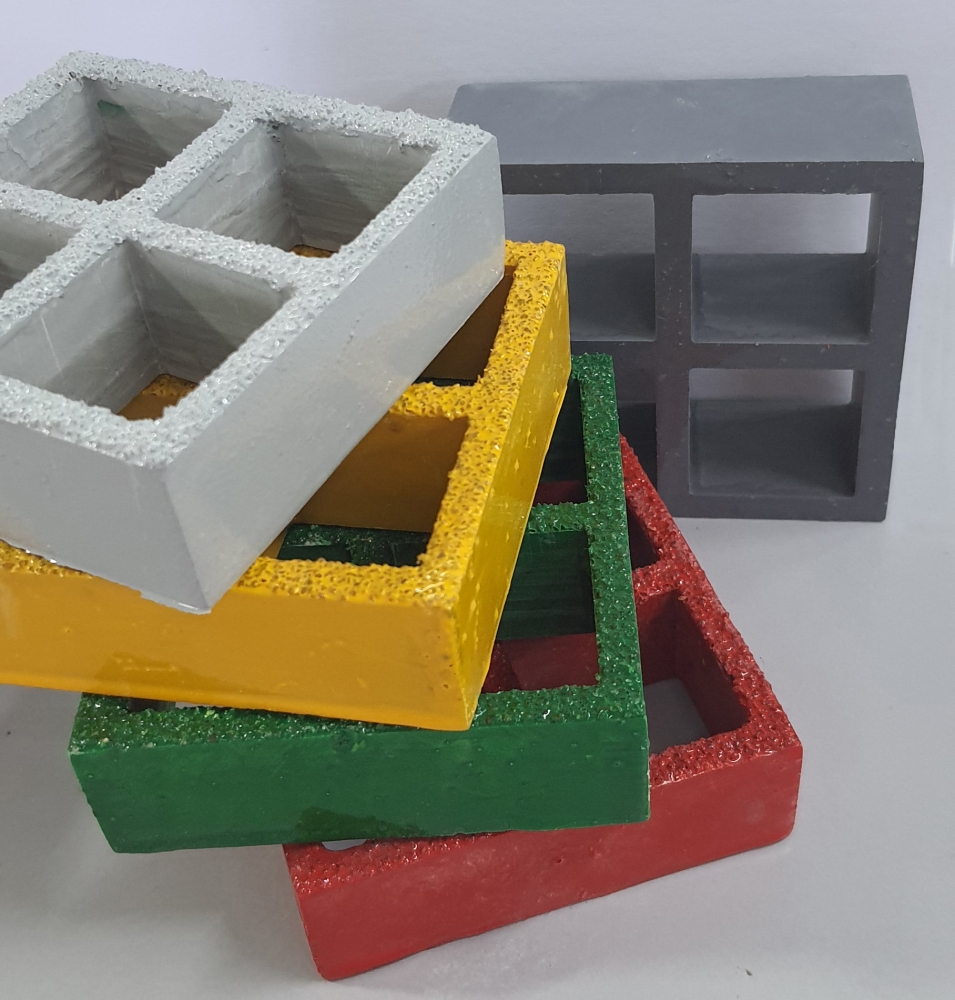

MG25-38 Custom Color (Grey, Yellow, Green and other option upon request)
SIRIM Certificate is available for this product, you may have it download from the below.
Product : Fiberglass Molded Grating
Model : MG 25-38 (Square)

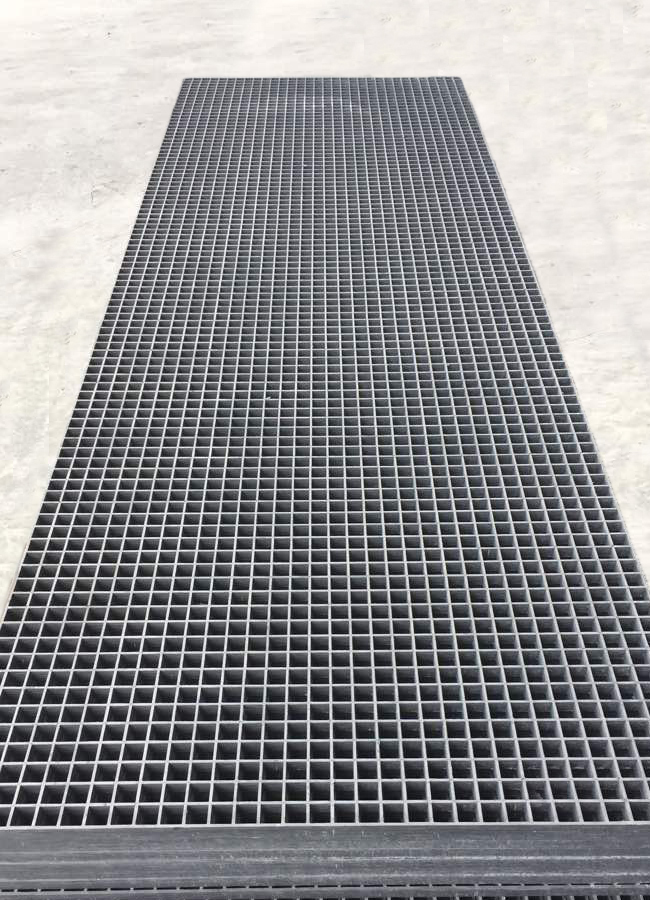

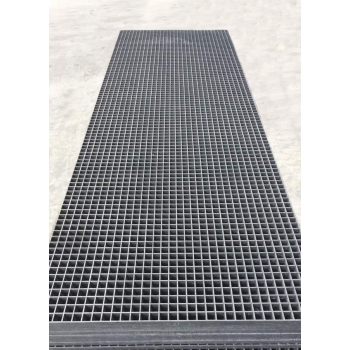

Standard Panel : 4ft x 12ft or 1220mm x 3660mm

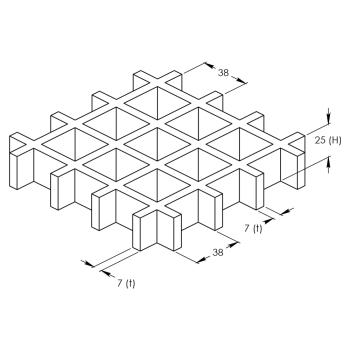

Mesh Size : 38mm x 38mm
Grating Height : 25mm
Color : Grey, Yellow, Green and other option are available
Resin : Orthophatalic, Isophatlic & Vinyl Ester (VE)
Application : Oil & Gas Platform, Construction, Electrical, Poultry & Agricultural
Features : rust free, chemical resistance, non-conductive
Fire retardant : Optional, please email for more details
- Made in Malaysia
- Cut To Size option available
- Product Chemical Resistant Chart available upon enquiry
Remarks - Molded Grating MG25-38 are proof tested in house for up to 7.5kN (General Duty for pedestrian traffic) and deflection less than 10mm according to BS4592 Part 6
Please feel free to contact us for installation and usage details.
Produk : Grating Beracuan Gentian Kaca
Model : MG 25-38 (Square)
Panel Standard : 4ft x 12ft or 1220mm x 3660mm
Saiz Jaringan : 38mm x 38mm
Ketinggian Grating : 25mm
Warna : Kelabu, Kuning, Hijau dan pilihan lain
Resin : Ortopatalik, Isofatlik & Vinyl Ester (VE)
Applikasi : Platform Minyak & Gas, Pembinaan, Sektor Elektrik, Penternakan Ayam dan Pertanian
Ciri-ciri : bebas karat, rintangan kimia, tidak konduktif
Kalis Api : Sila e-mel untuk mendapatkan butiran lanjut
- Buatan Malaysia
- Produk boleh dipotong mengikuti size
- Sila hubungi kami untuk Carta Tahan Bahan Kimia Produk
Catatan - Grid Beracuan MG25-38 telah diuji untuk ketahanan berat 7.5kN (Berat biasa untuk lalu lintas pejalan kaki) dan pesongan kurang daripada 10mm mengikut BS4592 Bahagian 6
Sila hubungi kami untuk butiran pemasangan dan penggunaan.
